7/8 inch connectors feem ntau yog siv rau hauv cov ntawv thov uas yuav tsum muaj kev sib kis ntau zaus lossis cov dej ntws loj dua, xws li cov khoom siv sib txuas lus, kav hlau txais xov, radar, thiab lwm yam xov tooj cua zaus (RF).
Nyob rau hauv no 7/8 "hom connector, Premier Cable Hoobkas tsim ze li ntawm 35 khoom, nrog rau 7/8" adapters, Mini-hloov Field Attachable Connector, Fieldbus Connector, Fais fab thiab teeb liab Connector cable, Sensor Connector, Eurofast Connector thiab lwm yam. cov ntaub ntawv, thov hu rausales03@premier-cable.net
1.7/8" Adapter
Qhov chaw sib txuas
7/8 Mini-Hloov Adapter rau Fieldbus DeviceNet NMEA 2000 yog siv los txuas cov khoom siv hluav taws xob rau cov khoom siv hluav taws xob hauv kev lag luam automation kom ntseeg tau tias kev xa hluav taws xob ruaj khov.
Mini-Change 7/8 connector Coupler Gender Changer yog siv los txuas cov sensors, actuators lossis lwm yam khoom siv rau kev tawm tswv yim thiab tso tawm ntawm kev tswj xyuas kom ntseeg tau cov teeb liab kis tau tus mob.
Mini-Change 7/8 connector Coupler Gender Changer yog siv los txuas cov khoom sib txawv lossis cov qauv kom ua tiav cov ntaub ntawv sib pauv lossis kev sib koom ua ke; nruab nrab ntawm automation tswj systems thiab teb cov cuab yeej, lub adapter no tuaj yeem pab txuas cov tswj hwm (xws li PLCs) nrog cov khoom siv hauv teb (xws li sensors, actuators).
NMEA 2000 Micro-Hloov M12 rau Mini-Hloov Adapter
DeviceNet Unit Shielded Connector M12 rau 7/8 "ua kom tsis muaj kev sib txuas ntawm cov khoom siv nruab nrog Micro-Change M12 connectors thiab Mini-Change connectors. thiab kev ua haujlwm.
Bus system T-connector DeviceNet M12 A-Code rau 7/8" -16UNF Parallel distributor
M12 mus rau 7/8 nti T connector yog tsim rau ntau yam kev sib txuas lus raws tu qauv thiab cov cuab yeej siv, xws li DeviceNet, PROFIBUS, CANopen thiab EtherNet/IP, uas yog ib qho kev cai nyob rau hauv industrial automation thiab tswj systems. Nws yog siv los txuas cov kev lag luam sensors, actuators thiab tswj cov cuab yeej, kom ntseeg tau tias kev sib kis tau ruaj khov ntawm cov ntaub ntawv thiab tswj cov cim ntawm cov khoom siv sib txawv, thiab txhim kho kev sib koom ua ke thiab kev ua haujlwm zoo.
2.7/8" Splitter
Lub voj voog txuas nrog 7/8 "sab nraud txoj kab uas hla feem ntau tuaj nrog ntau yam kev teeb tsa tus pin, nyob ntawm tus qauv tshwj xeeb thiab daim ntawv thov.
Ua ntej, H-splitter
2 Pins: Siv rau kev sib txuas hluav taws xob yooj yim uas tsuas yog ob lub conductors xav tau.
3 Pins: Feem ntau siv rau cov ntawv thov uas yuav tsum muaj kev sib txuas hauv av nrog rau ob lub teeb liab lossis lub zog hluav taws xob.
4 Pins: Feem ntau siv rau cov suab paj nruag sib npaug, qhov twg ob khub ntawm cov neeg xyuas pib (zoo thiab tsis zoo rau txhua lub channel) yuav tsum tau ua.
5 Pins: Siv rau cov ntawv thov xav tau kev tswj xyuas ntxiv lossis cov kab teeb liab, xws li hauv qee qhov kev sib txuas ntawm cov sensor.
7 Pins: Feem ntau nyob rau hauv cov ntaub ntawv kis tau tus mob cov ntaub ntawv uas yuav tsum tau muaj ntau lub teeb liab kab, xws li nyob rau hauv Ethernet los yog lwm yam kev sib txuas lus raws tu qauv.
9 Pins: Qee zaum siv rau hauv kev tswj hwm kev lag luam lossis cov ntawv thov uas xav tau ntau lub teeb liab thiab cov kab tswj.
Ntau tshaj 9 Pins: Nyob ntawm cov khoom sib txuas tshwj xeeb thiab cov chaw tsim khoom, 7/8 "lub voj voog txuas tuaj yeem muaj kev teeb tsa nrog ntau tus pins, xws li 12, 19, lossis ntau dua, rau cov ntawv thov nyuaj uas cuam tshuam nrog kev faib hluav taws xob, xa cov ntaub ntawv, lossis tswj cov cim .
T-coupler H-coupler 7/8" txiv neej rau poj niam3- ncejParallel Circuit Court
12 Pins
Tswj Cov Teeb Meem: Tau txais ntau yam kev tswj cov teeb liab hauv kev lag luam automation lossis machinery.
Kev xa cov ntaub ntawv: Siv rau hauv cov ntawv thov uas xav tau ntau cov kab ntawv, xws li hauv Ethernet lossis cov ntaub ntawv kev lag luam.
Mixed Signal thiab Power: Feem ntau siv nyob rau hauv cov xwm txheej uas yuav tsum tau ua ke ntawm cov teeb liab kab thiab lub hwj chim conductors, muab kev yooj yim rau ntau hom kev sib txuas.
19 Pins
High-Density Data Transmission: Siv nyob rau hauv daim ntawv thov uas yuav tsum tau muaj ntau cov ntaub ntawv kab, xws li nyob rau hauv high-ceev cov ntaub ntawv kev sib txuas lus raws tu qauv los yog cov teeb liab.
Multichannel Control: Haum rau cov ntawv thov uas xav tau ntau lub teeb liab tswj, tso cai rau cov txheej txheem nyuaj sib cuam tshuam.
Fais fab Kev faib tawm: Qee zaum, ib feem ntawm cov pins yuav mob siab rau kev xa hluav taws xob lossis kev faib tawm, nyob ntawm tus connector tus tsim thiab specifications.
6 Pin
Lub zog thiab lub teeb liab sib xyaw: Siv rau hauv cov ntawv thov uas yuav tsum muaj kev sib txuas ntawm lub zog thiab cov kab teeb liab. Piv txwv li: 4 tus pins rau cov kab teeb liab thiab 2 tus pins rau lub zog.
Muaj Automation: Feem ntau siv nyob rau hauv industrial sensors thiab actuators.
Feem ntau hauv kev tswj hwm qhov twg ntau lub teeb liab yuav tsum tau xa mus.
Kev xa cov ntaub ntawv: Haum rau qee yam kev sib txuas lus raws tu qauv uas xav tau rau kab, xws li RS-232/RS-485 lossis lwm cov qauv sib txuas lus.
Kev sib txuas ntawm lub cev muaj zog: Yuav siv tau rau kev sib txuas cov motors uas xav tau ntau theem ntxiv rau cov kab tswj ntxiv.
Teeb pom kev zoo Systems: Siv hauv cov teeb pom kev zoo uas tswj cov teeb liab (xws li DMX) thiab cov kab hluav taws xob sib xyaw ua ke.
Audio/Visual Equipment: Tej zaum yuav siv tau rau cov suab paj nruag sib npaug lossis lwm yam khoom siv AV uas xav tau ntau yam kev sib txuas.
Thib ob, Tee splitter
General Advantages:
Versatility: Muaj nyob rau hauv ntau tus pin configuration kom haum rau cov kev xav tau sib txawv.
Standardization: Cov qauv siv feem ntau ua kom muaj kev sib raug zoo thoob plaws ntau yam khoom siv thiab tshuab.
Kev ntseeg tau: Kev ruaj ntseg thiab ruaj khov kev sib txuas txo qhov kev pheej hmoo ntawm kev sib txuas lossis kev ua tsis tiav hauv cov txheej txheem tseem ceeb.
Durability: Tsim los tiv thaiv kev lag luam hnyav nrog kev tiv thaiv plua plav, ya raws, thiab kev ntxhov siab.
Yooj yim ntawm Kev Txhim Kho: Tee connectors yooj yim txuas los ntawm kev tso cai rau ib qho txuas txuas rau hauv ntau qhov kev sib txuas, txo qhov nyuaj ntawm cov cabling.
Qhov zoo los ntawm Pin Configuration
2-pin Connectors
Simplicity: Qhov zoo tshaj plaws rau kev sib txuas ncaj qha hluav taws xob, txo cov kev sib txuas ntawm kev sib txuas.
Compact Size: Cov me me tuaj yeem ua tau zoo hauv kev siv qhov chaw txwv.
3-pin Connectors
Hwj chim thiab teeb liab: tuaj yeem muab lub zog thiab ib lub teeb liab lossis hauv av, ua rau lawv haum rau cov sensors thiab cov khoom siv yooj yim.
Flexibility: Ntau yam rau ntau yam kev siv uas xav tau ib txoj kev teeb liab.
4-pin Connectors
Txhim Kho Kev Ua Haujlwm: Tso cai rau lub zog, hauv av, thiab ob lub teeb liab kab, ua rau lawv zoo tagnrho rau cov khoom siv ntau dua.
Balanced Design: Kev sib npaug zoo ntawm kev yooj yim thiab kev ua haujlwm rau kev siv nruab nrab nyuaj.
5-pin Connectors
Cov Teeb Meem Ntxiv: Txhawb ntau lub teeb liab lossis tswj kab nrog rau lub zog, haum rau cov khoom siv siab dua.
Kev siv nthuav dav: Zoo tagnrho rau cov ntawv thov uas xav tau ntau cov ntaub ntawv kab lossis tswj cov cim, xws li cov sensors ntse thiab cov actuators.
6-pin Connectors
Maximum Versatility: Muab cov kev sib txuas ntau tshaj plaws rau cov kab ke nyuaj nrog ntau lub teeb liab yuav tsum tau ua.
Advanced Applications: Haum rau cov ntawv thov uas xav tau kev tswj hwm thiab kev sib txuas lus, xws li cov tshuab ua haujlwm siab tshaj plaws thiab cov khoom siv sib txuas lus.
3.7/8 "Sensor & Fais Fab Cable
Ua ntej, 7/8 "thaj chaw wireable connector
7/8 "British teb wireable threaded connector yog ib qho tseem ceeb tshaj plaws connectors nyob rau hauv lub tam sim no Hoobkas automation thiab fieldbus teb. motors, ntim thiab kis tau tus mob, sab nraum zoov LED modules, rail tsheb thauj mus los, nkoj radar thiab navigation, raws li zoo raws li fieldbus DeviceNet thiab NMEA 2000 qhib network systems. Peb 7/8 "inch connector tsim coj mus rau hauv tus account ntau yam hnyav siv ib puag ncig thiab npog daim ntawv thov nyob rau hauv ntau yam huab cua thiab lub sij hawm, xws li: siab thiab tsis kub tsis kam, dej thiab alkali tsis kam, roj kuj, corrosion kuj, UV kuj, dabtsi yog khoov kuj. , hnav tsis kam, ntsaws tsis kam, thiab lwm yam.
Premier Cable Hoobkas tshwj xeeb hauv kev tsim ntau hom 7/8 "thaj chaw xaim hluav taws xob txuas, suav nrog lub plhaub yas thiab cov plhaub tooj liab xaiv kom tau raws li qhov xav tau ntawm cov ntawv thov sib txawv.
Thib ob, 7/8 "Pib-los ntawm Automation Vaj Huam Sib Luag Circular Sensor Connector
Hlau 7/8 "Feed-Through Vaj Huam Sib Luag Txuas Txuas muaj lub zog siab thiab zoo heev electromagnetic shielding, muab cov kev sib txuas hluav taws xob txhim khu kev qha hauv cov cheeb tsam hnyav. txo cov kev xav tau ntawm kev saib xyuas thiab ua kom haum rau qhov kub thiab txias thiab high voltage daim ntawv thov.
Thib peb, DeviceNet Trunk Mini-C nrog terminator resistor 5 ncej
7/8 "terminal resistor yog ib qho kev sib txuas ntawm kev lag luam, feem ntau suav nrog 120 ohm resistor, siv los ua kom muaj kev ncaj ncees ntawm cov teeb liab network thiab tiv thaiv kev cuam tshuam cov teeb liab.
Nws yog ua los ntawm cov ntaub ntawv rugged, haum rau hnyav kev lag luam ib puag ncig, nrog rau cov neeg kho tshuab muaj zog thiab qib kev tiv thaiv siab (xws li IP67), feem ntau siv hauv DeviceNet thiab lwm lub tshuab hluav taws xob los xyuas kom muaj kev sib txuas lus zoo thiab kev ruaj ntseg network.
Cov ntawv thov raug:
DeviceNet Networks:
Siv los txiav tawm DeviceNet cov kab kev sib txuas lus, kom ntseeg tau tias kev ua haujlwm zoo hauv lub network.
Muaj Automation Systems:
Qhov tseem ceeb hauv automation systems kom tswj kev sib txuas lus txhim khu kev qha ntawm sensors, actuators, thiab controllers.
Manufacturing Environments:
Feem ntau hauv cov chaw tsim khoom uas muaj zog thiab txhim khu kev qha kev sib txuas network yog qhov tseem ceeb.
Fieldbus Networks:
Haum rau siv nyob rau hauv ntau yam fieldbus systems, muab kev txiav kom tsim nyog los tswj lub network kev ncaj ncees.
Sab nraum zoov thiab hnyav ib puag ncig:
Qhov zoo tshaj plaws rau kev siv sab nraum zoov lossis ib puag ncig uas muaj plua plav, noo noo, thiab kev ntxhov siab hauv tshuab.
Plaub, Actuator sensor 7/8 "Circular Connector Fais Fab Cable
7/8 "civ connector fais fab cable yog ib tug high-kev ua tau zoo cable tsim rau kev lag luam daim ntaub ntawv. Nws siv ib tug 7/8-inch ncig connector los muab ruaj khov thiab txhim khu kev qha fais fab kis tau tus mob. cable yog tsim rau cov kev xav tau ntawm lub zog sib txuas hauv ntau qhov chaw hnyav Nws tsim kom muaj kev sib txuas zoo heev thiab kev siv hluav taws xob, thiab siv dav hauv cov cuab yeej siv hluav taws xob, tshuab tshuab, thiab lwm yam khoom siv.
Peb kuj tuaj yeem kho qhov txuas no rau hauv ib qhoEuropean txheem pluglos yog ibAmerican plugraws li koj xav tau los hloov kho kom haum rau cov kev xav tau ntawm kev sib txuas ntawm cov cheeb tsam sib txawv.
"7/8"-16UNF Inter bus Power Supply Cable" yog ib lub cable tsim los muab kev sib txuas hluav taws xob txhim khu kev qha rau cov khoom siv hluav taws xob. Ib qho kawg ntawm cable yog nruab nrog tus qauv 7/8-inch ncig txuas , uas yog tsim rau ntau yam khoom siv thiab kev siv, muab kev ruaj ntseg hluav taws xob sib txuas thiab kav ntev.
Lwm qhov kawg yog txuas nrog ib qho IEC C13 qhov (socket), uas yog tsim rau cov khoom siv hauv tsev thiab chaw ua haujlwm xws li desktop computers, servers, printers, thiab lwm yam. Cov qauv tsim no ua kom cov cuab yeej muaj peev xwm tau txais lub zog ruaj ntseg thiab ntseeg tau, ua tau raws li cov kev xav tau ntev- lub sij hawm ruaj khov ua haujlwm ntawm lub cuab yeej.
7/8 "Circular Connector rau IEC C13 Fais Fab Cable
Kev Siv Hluav Taws Xob Moulded Cable nrog 7/8 "Connector 3 Pin yog lub zog hluav taws xob zoo tsim los rau kev xa hluav taws xob hauv kev lag luam thiab kev lag luam, cable yog tsim los siv cov txheej txheem molding los xyuas kom meej qhov kev ntseeg tau thiab kav ntev ntawm kev sib txuas. nruab nrog lub 7/8-inch 3-pin ncig connector, uas yog haum rau ntau yam khoom hnyav thiab tshuab, muab kev ruaj ntseg hluav taws xob sib txuas thiab kev tiv thaiv.
Cov qauv tsim molded tsis tsuas yog txhim kho cov dej tsis zoo thiab kev puas tsuaj ntawm lub cable, tab sis kuj txhim kho tag nrho cov neeg kho tshuab lub zog kom hloov mus rau ntau qhov chaw ua haujlwm hnyav. Lub hwj chim cable no yog qhov kev xaiv zoo tshaj plaws rau kev siv cov xwm txheej uas xav tau kev ntseeg siab thiab ua haujlwm ntev.
7/8 nti Circular Sensor Actuator Fais Fab Cable
7/8"-16UNF Fais Fab Cable (5-Pin Txiv neej rau Qhib Kawg) yog ib qho kev sib txuas ua haujlwm siab tsim los rau kev siv hauv kev lag luam. Lub cable yog nruab nrog tus qauv 7/8"{{7 }}UNF 5-pin txiv neej connector ntawm ib kawg thiab qhib kawg ntawm lwm kawg, uas yog yooj yim rau kev sib txuas yooj yim rau ntau yam khoom siv. Nws txoj kev tsim rugged ua rau nws muaj kev ntseeg siab hauv kev lag luam hnyav, muab lub zog ruaj khov thiab cov teeb liab kis tau tus mob.
Qhov no cable yog dav siv nyob rau hauv industrial automation, neeg hlau, ntau lawm kab khoom, hnyav machinery, thiab ntau yam muaj zog sib txuas. Nws lub plhaub ruaj khov thiab cov khoom siv hluav taws xob zoo ua kom lub neej ntev thiab kev ua haujlwm siab ntawm cable. 7/8"-16UNF fais fab cable yog ib qho tseem ceeb ntawm kev sib txuas tivthaiv rau ntau yam khoom siv hauv kev lag luam, muab lub zog zoo thiab cov teeb liab xa mus rau koj lub cev.
DeviceNet Mini-Hloov 5 Ncej Thick Trunk Cable
Lub DeviceNet Backbone Extension Cable 7/8" 5-pin txiv neej rau poj niam yog cov khoom lag luam zoo tshaj plaws tsim rau DeviceNet tes hauj lwm. Cov cable no tau nruab nrog 7/8" 5-pin txiv neej connector ntawm ib qho kawg thiab 7/8" 5-pin poj niam connector ntawm qhov kawg, ua rau nws yog qhov kev xaiv zoo tshaj plaws rau kev txuas DeviceNet tes hauj lwm.
Qhov no cable yog dav siv nyob rau hauv industrial automation systems los txuas controllers, sensors, actuators thiab lwm yam DeviceNet li kom ruaj khov kis tau tus mob ntawm cov ntaub ntawv thiab lub zog. Nws lub plhaub sab nrauv ruaj khov thiab cov khoom siv hluav taws xob zoo ua kom lub neej ntev thiab kev ua haujlwm siab ntawm lub cable nyob rau hauv cov xwm txheej hnyav. Lub DeviceNet Backbone Extension Cable muab kev hloov pauv tau yooj yim thiab kev sib txuas zoo rau koj lub network.
DeviceNet Mini Trunk Cordset Thick Cable 7/8-16UN2 connector
DeviceNet Mini Backbone Kauv Cable nrog 7/8-16UN2 connector yog ib tug zoo-tsim kev lag luam kev daws teeb meem. Nws qhov tshwj xeeb kauv daim ntawv tso cai rau lub cable kom hloov kho ntawm kev ncab thiab kev cog lus, muab kev yooj yim thiab yoog raws, ua rau nws zoo tagnrho rau kev siv nyob rau hauv ib puag ncig uas muaj qhov chaw tsawg lossis nquag txav.
Cov kab no siv cov ntaub ntawv pov thawj sab nrauv uas tuaj yeem tiv taus cov kev lag luam hnyav, suav nrog roj, puas thiab UV raug. Kev tsim cov kab tuab tuab ua kom muaj peev xwm kis tau tus mob tam sim no, ua rau nws tsim nyog rau kev siv hluav taws xob siab. Tus qauv 7/8-16UN2 connector ua kom muaj kev sib raug zoo nrog ntau yam ntawm DeviceNet li thiab muab kev sib txuas ruaj khov thiab ruaj khov.
Txawm hais tias nws yog kev lag luam automation, cov cuab yeej siv ntau lawm lossis cov tshuab hnyav, qhov kauv cable no tuaj yeem muab lub zog hloov tau yooj yim thiab rugged thiab teeb liab kev sib txuas daws teeb meem rau koj lub cev, pab kev ua haujlwm zoo thiab kev ruaj ntseg ntawm cov khoom siv mus ntev.

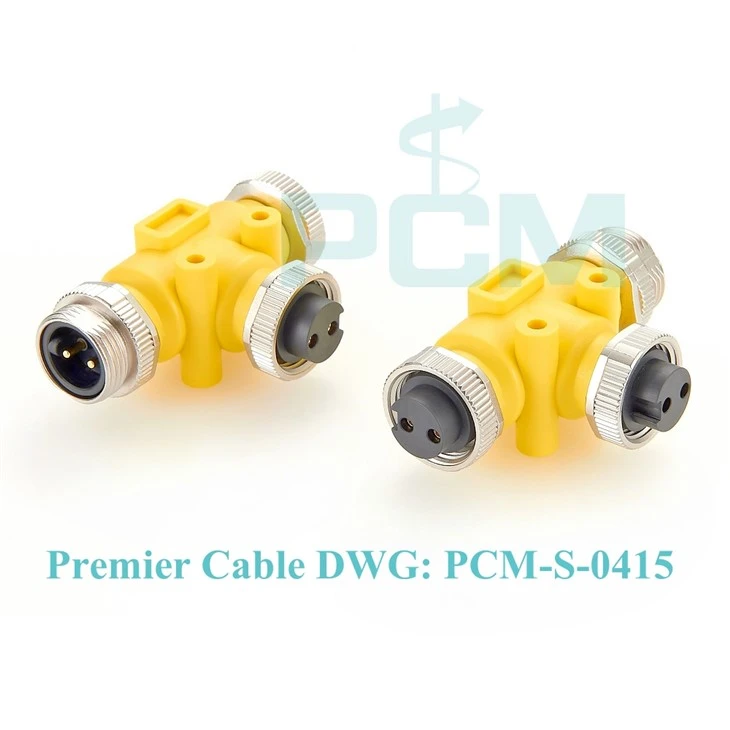

Thib tsib,NMEA 2000 PROFIBUS DeviceNet 7/8" Mini-hloov Tee splitter Y-splitter H-hom Circular Connector Cable
NMEA 2000, PROFIBUS, DeviceNet 7/8 "Mini-hloov Tee Distributor (Y-type distributor, H-type ncig connector cable) yog ib qho kev ua tau zoo ntawm kev lag luam kev sib txuas tsim los ua kom yooj yim network topologies. Y-hom thiab H-hom kev xaiv kev sib txuas los tsim kev sib txuas txhim khu kev qha ntawm lub cev cables thiab ceg khoom siv.
Nws rugged tsim yog tsim rau ntau yam hnyav industrial thiab maritime ib puag ncig, kom ntseeg tau tias kev ua haujlwm ruaj khov mus ntev. Tus neeg muab khoom siv tau txais 7/8 "Mini-hloov lub voj voog sib txuas thiab sib haum nrog ntau yam kev sib txuas lus xws li NMEA 2000, PROFIBUS thiab DeviceNet, ua qhov kev xaiv zoo tshaj plaws rau kev nthuav dav thiab tswj kev sib txuas lus.
Tus neeg xa khoom no yooj yim heev rau kev teeb tsa thiab kev sib txuas ntawm cov khoom siv, txo cov sij hawm xaim thiab cov khoom siv, thiab txhim kho kev sib txuas thiab kev ntseeg tau. Txawm hais tias nyob rau hauv kev lag luam automation systems los yog kev sib txuas lus hauv hiav txwv, tus xa khoom no yog ib qho tseem ceeb rau kev sib txuas zoo thiab txhim khu kev qha.
DeviceNet CAN Bus Adapter cable Micro-hloov M12 A-coded 5-pin rau 7/8 "Mini-hloov connector
Premier Cable Hoobkas tsim peb hom M12 rau 7/8 "connectors thiab cables, xws li 7/8" txiv neej mus rau M12 poj niam, 7/8" poj niam rau M12 txiv neej connectors, thiab M12 poj niam extension cable 7/8" txiv neej rau poj niam tee connectors. Cov kev daws teeb meem no yog tsim los ua kom tau raws li ntau yam kev xav tau ntawm kev sib txuas ntawm cov cuab yeej, kom ntseeg tau tias muaj txiaj ntsig zoo thiab kev ntseeg siab.
